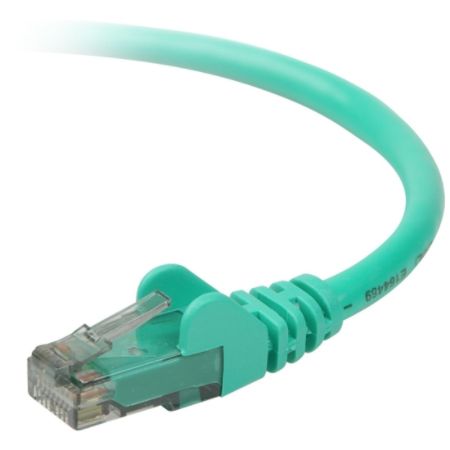

Belkin Cat. 6 UTP Patch Cable Item # 883527
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
883527
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Belkin Snagless Cat6 patch cables provides enhanced bandwidth performance up to 550MHz for your Gigabit applications. Each cable is constructed with 100% pure copper strands to minimize impedance, structural return loss (SRL) and Near End Crosstalk (NEXT) in comparison to standard 100 Mhz or 350Mhz cables). Fully compatible with 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications. Belkin meets Prop 65/RoHS/CE regulatory standards.
Product Details
| Item # | 883527 |
| Manufacturer # | U45992 |
| Additional Information | PowerSum tested; Strain relief; 2-row staggered pin configuration to control cross-talk at hyper-frequency. |
| Cable Characteristic | Patch Cable |
| Features | Snagless; Molded |
| Product Name | Cat. 6 UTP Patch Cable |
| Connector on First End | 1 x RJ-45 Male |
| manufacturer | Belkin International, Inc |
| brand name | Belkin |
| Connector on Second End | 1 x RJ-45 Male |
| cable type | Category 6 |
| Connectors | 1 x RJ-45 - male |
| Connectors (Other Side) | 1 x RJ-45 - male |
| length | 20 ft. |
| Conductor | Copper |
| color | green |
| warranty length | limited lifetime |
| Show More ▾ |
Customer Reviews
Product Q & A
From the Manufacturer|
Overview
-
Upgrade your network with a CAT6 Snagless Networking Cable from Belkin and enjoy clean, clear transmissions. Now you can replace CAT5 cables that don’t support 100Base-T or gigabit Ethernet and improve the return loss in your current network by 40 percent. Engineered with 50-micron, gold-plated connectors to ensure clear transmissions and snagless molds to protect the RJ45 tab from damage during installation, this cable meets the performance requirements of Category 6.Belkin Build-To-Order Service: Belkin can manufacture virtually any cable type, length, or color. Contact your Belkin team today to get pricing and lead times.
Images
Features
-
- Maximize your network speed with higher bandwidth
- Perfect for VoIP, video, and file transfers
- Performance tested - tested to exceed 500MHz
- Protect your network for future expansion
- Belkin Lifetime Warranty
Specifications
| Cable Type | Cat 6 |
| Characteristic Impedence | 100±15Ω @ 1 ~ 550MHz |
| Conductor Construction | Bare Stranded Copper |
| Conductor Resistance | 93.8Ω/km/20°C max |
| Conductor Size | 24AWG x 4pairs |
| Connector Type(s) | 50 micron gold-plated connector |
| Connectors | RJ45 |
| Dielectric Strength | AC 1.5kV |
| Flame Retardant Test | CM |
| Insulation Material | HDPE |
| Jacket Diameter | 5.9±0.15mm |
| Jacket Material | PVC |
| Mutual Capacitance | 56pF/m max |
| Propagation Delay | 536nS/100m max @ 550MHz |
| Spark Test | 2.5kV |
| Standards Compliance | ISO/IEC 11801; TIA/EIA-568-B.2-1 |
| Structural Return Loss | 8.6dB min at 550MHz |
